Alpine Tray – Long Run Roofing

The Alpine Tray standing seam roofing profile is designed to withstand some of New Zealand’s harshest weather in our toughest environments.

The high rib height enhances the bold lines of the Alpine Tray roofing profile and provides greater water carrying capacity and strength for snow loading uses in alpine regions.

Our Alpine Tray provides enhanced depth and dramatic shading effects and can be found in many architecturally noteworthy designs.

The modern 455mm wide Alpine Tray roofing and walling system is roll-formed onsite in long single lengths and secret fixed or ‘snap locked’ to roof purlins and wall girts via a simple clip system.

Depending on seam height, a minimum pitch of 3° or 5° is achievable which successfully enables designers to use the profile to conform to height restrictions on residential projects.

Alpine Tray is available in all New Zealand Steel colours and looks equally attractive when used as a wall cladding or metal roofing product.

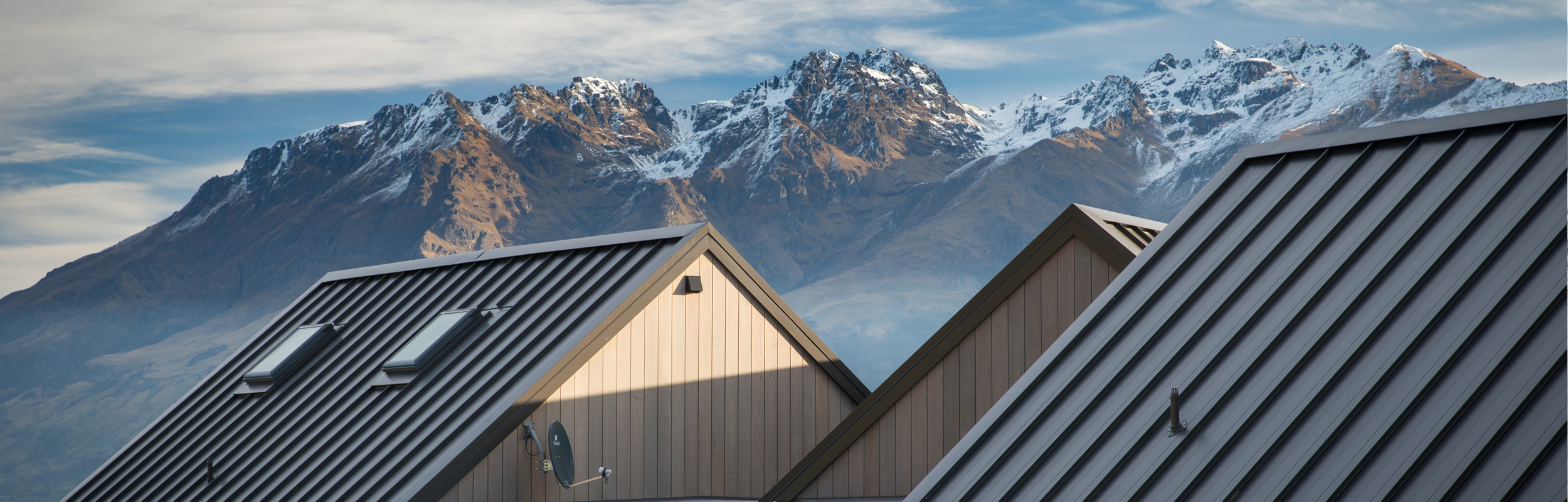

Photo Credit: Home by Evolution, a division of Rilean Construction.

Alpine Tray Roof Drawings
